CPF-T Transitive-Reflecting Color Viewing Booth(Color Viewer)

CPF-T Transitive-Reflecting Color Viewing Booth(Color Viewer)

Product Information

Brand: INTEKE

CPF-T Transitive-Reflecting Color Viewing Booth(Color Viewer)

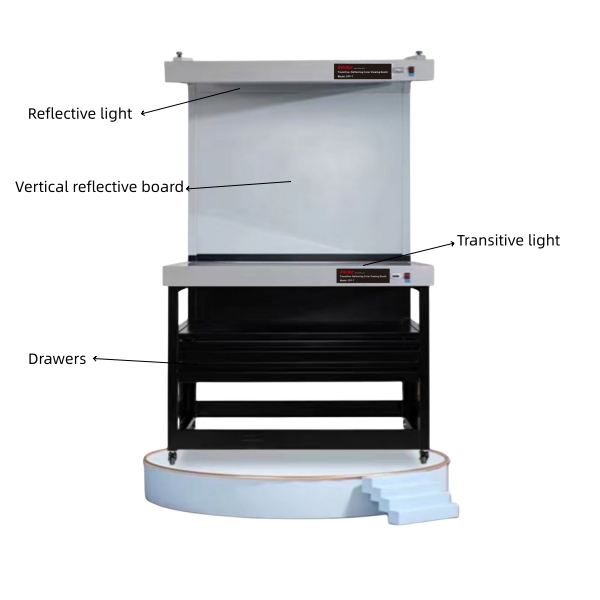

CPF-T Transitive-Reflecting Color Viewing Booth(Color Viewer) is designed especially for color comparison between objects and samples during the printing process. It adopts CPL asymmetrical standard lighting viewing box and can illuminate two working surfaces. Integral sheet metal support structure, two sample large drawers. Vertical reflective board can be rotated design, easy to adjust the observation angle. And the drawer beneath the working table can house films and PS plates. It's equipped with rolling track, which enables it to slide under weight.

CPF-T Transitive-Reflecting Color Viewing Booth(Color Viewer) Tube parameter:

Color temperature: D65 (6500k) or D50 (5000k)

Power: 36W

Length: 1200mm

Reflective 36w * 4

Transitive 36w * 4

Reflective light part: Aluminum alloy material, Streamline design, rotate angle, uniform light

Transitive light part: Glass & Acrylic leveling board, uniform light and uniform non-dazzling

CPF-T Transitive-Reflecting Color Viewing Booth(Color Viewer) Specifications:

Main Material: Metal

Dimension(mm): 1350L* 970W * 2160H

Desktop size(mm): 1350L* 850W

Transitive size(mm): 1185L* 685W

Vertical reflective board size(mm): 1310L * 1030W

•
  Seven Light source Color Assessment Cabinet CAC(7)
•
  TL84(36") - Philips Master TLD 30W/840
•
  CWF(36") - Sylvania Cool White F30T8/CW
•
  X-rite SPLIII D65-750W 120V (EJG), GE
