Precision Colorimeter WF32 8mm

Product Information
Brand: iWave

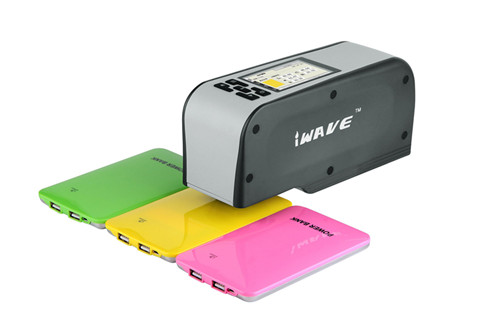

Precision Colorimeter / Color Tester WF32 8mm

WF32 colorimeter is a high precision, high stability, versatile colorimeter. WF32 has eight kinds of measuring light source (A, D50, D65, C, F2, F7, F11 and F12); six kinds of color modes (CIE1976LAB, CIEXYZ, CIELUV, HunterLAB, sRGB, white yellowness); eight kinds of color difference formula (△ E * ab, △ ECMC, △ EISO, △ ECIE94, △ EFCM Ⅱ, △ ELuv, △ Ehunter, △ EsRGB); three languages patterns (Simplified Chinese, Traditional Chinese and English), and three measurements caliber choice for users. WF32 colorimeter can be whiteness and yellowness measurements and average measurements, with large-capacity data storage space, you also can add mini-printers to do real-time printing measurement data. It can be used with standard "color analysis system" software. Caliber 8mm is a general-purpose color difference meter, considering the general method for detecting color, all walks of life habit, and the measuring caliber requirements of various materials. 8mm caliber provides great convenience and trustworthy reliability for all industry to discuss the color technology, because of its versatility, its tiny table difference, and stability.

Model	WF32
Display Mode	CIELAB、CIELCH、CIEXYZ、CIELUV、HunterLAB、sRGB
Color Difference Formula	△E*ab、△ECMC、△EISO、△ECIE94、△EFCMⅡ、△ELuv、△Ehunter、△EsRGB
Yellowness and Whiteness	Ganci whiteness、 ISO brightness、 YI yellowness
Illumination Condition	CIE Recommendation：8/d
Light Source	LED blue excitation
Sensor	Photodiode array
Measurement Caliber	φ4mm/φ8mm/φ16mm Alternative
Measurement Condition	Observer：CIE 10° Standard observer Light source：A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30) Contain light way：SCI SCE
Measurement Range	L: 0 to 100
Repeated Accuracy	△E<0.03 (take the deviation average after 30 times measuring the whiteboard)
Table Difference	△E<0.2
Measurement Interval	0.5 Sec.
Average Measuring Function	Average measuring frequency: 1-32 times
Color Simulation Function	yes
Storage Capacity	Type sample data : 100 with testing sample data: 20000 Whiteness/yellowness data: 200
Language Patterns	English/Simplified Chinese/Traditional Chinese
Quality Control Software	《Color-Analysis System》 software
Battery Charging Time	8 hrs
Battery	Li-ion battery, 5000 times Measurement
Lifetime of Bulb	5 years more than 1.6 million measurements
Display Screen	TFT true color 2.8inch@(16:9) Resolution ratio:400x240
Interface of External	USB2.0 (USB-B型)- data communication with 《color analysis system》software RS-232 (115200bps)- connected with micro printer
Working Temperature Range	0℃-40℃（32℉-104℉）
Storage Temperature Range	-20℃-50℃（-4℉-122℉）
Humidity Range	Relative humidity less than 85%,without condensation
Weight	700g
Size	1996890mm
Size of Exterior Package	400240340mm
Standard Accessories	Standard whiteboard/Standard black cavity/3000mAH Li-ion battery/AC adapter/USB Data line/CD《Color analysis software》/User manual/Warranty card
Optional Accessories	Flour measuring device/Liquid measuring device/Micro printer
