James H.Heal Sample Cutters / GSM Cutter 230/100

Product Information
Brand: James-heal

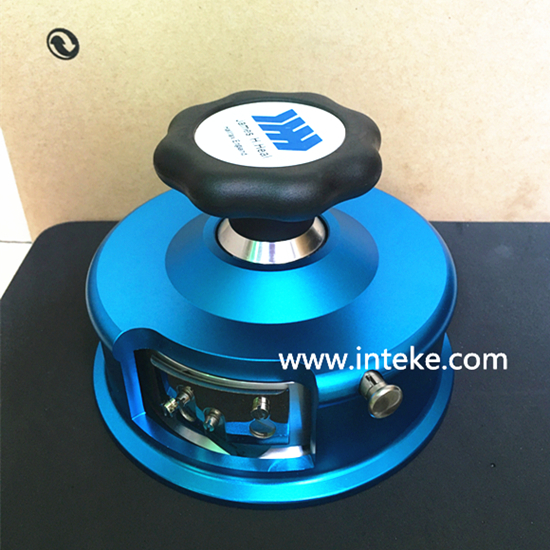

James H.Heal Sample Cutters,Circular Cutter 230/100

Virtually any type of material can be cut, including woven, nonwoven and
knitted textiles, carpet, ﬁlm, foam, paper and board.

The cutters can handle material thicknesses up to about 5mm. If you need more, Model 230/100 incorporates heavy duty blades and can cut specimens up to approximately 10mm thick.

If in doubt, send us some material for evaluation.Cut specimens are weighed to determine the weight per unit area of the material or specimens are cut to a particular diameter in preparation for some other form of testing.
Subject to quantity, we can offer any diameter between 38mm and 140mm. Diameters outside this range are not ractical. The standard sizes are shown in the table below.

UKAS-accredited
Certiﬁcates of Calibration are available to conﬁrm the cutting accuracy of these instruments.
We supply suitable digital balances for weighing the cut specimens in either g/m2 or oz/yd2.

Model Specimen Area Specimen Diameter
230/100 100cm2 113mm

*Weigh the specimen in ounces and multiply the result by 100 to obtain oz/yd
