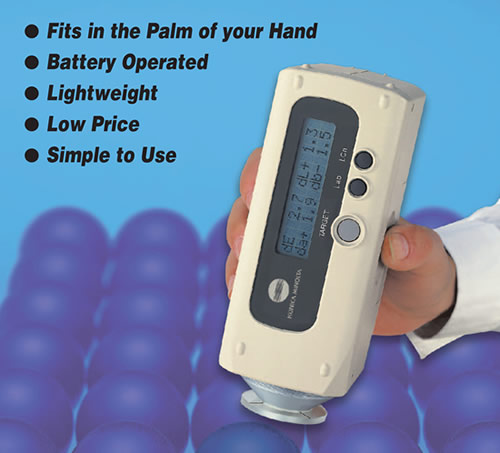

CR-10 difference color measuring

Product Information
Brand: Konica Minolta

Brand: KONICA MINOLTA

CR-10 color matching Features:

1.Simple, convenient and easy-use.

2.Portable and handhold design; Light weight (360g); Available to connect with a printer; Norm power supply and Battery power supply all available.

3.Favorable price with best service.

CR-10 color tolerance Product info

Specifications

Ilumination	8°illuming angel, diffusion
Measuring aperture	¢8mm (approx.)
Display mode	Δ( Lab* ) ΔEab Δ( LCH ) ΔE*ab
Standard color memory	one,Input by measurement
Measuring range	L*:10 to 100
Measuring condition	observer:CIE10°standard observer
	Light source:CIE D65
repeatability error	Standard deviation within ΔE*ab 0.1
	(use the average value by white board measurement)
Measuring interval	About 1 second
Power supply	4 batteries (Size AA) or AC-A12 adapter
Power consumption	Halogen-manganese battery: 10seconds interval, up to 2000 times
	Nickel-cadmium battery:10seconds interval, up to 600 times
Temperature	0~40°C( 32~104°F ); Relative humidity<=85%
Standard accessories	soft bag. Protecting cover. wrist tie. 4 batteries (AA Size)
Optional accessories	AC adapter, printer
Application	Widely applied in norm industry.

Functionality:
Auto color comparing between the sample and the tested object, "L, a, b" data output , ΔE. ΔL. Δa.Δb data.
ΔE Total chromatic aberration
ΔL "become higher" -- "become whiter",ΔL "become lower" -- "become blacker"
Δa "become higher" -- "become redder",Δa"become lower" -- "become greener"
Δb "become higher" -- "become yellower",Δb"become lower" -- "become bluer"
Notice Information:
1. Remove the protecting cover.
2. Turn on the power.
3. Press the"TARGET"key,then you will see: Target L a b.
4. Aim the camera lens at the relevant part of the sample, then press the "record" key. After you have heard the camera-shot voice, relevant data will be displayed: Target L *. a +-*. b +-*..
5. Aim the camera lens to the relevant of the measured object, do as the above "Step 4", then you will see the chromatic aberration data: dL *. da +-*. db +-*..
6. According to the above,user can get the measuring result through the "dL,da,db".
7. Repeat "Step 6" and "Step 7" to perform other measurement in the same way.
8. If you press "TARGET", it will come back to "Step 4".
9. After you have finished the measurement, put the protecting cover back to its position, and then turn off the power.
